HORIZONTALLY PERFORATED BRICKS ARE MANUFACTURED IN ACCORDANCE WITH THE  EN 771-1 STANDARD WITH THE CE BRAND and TSE CERTIFICATE.

ON THE DIAGRAM THE SPECIAL DESIGN OF OUR 13,5 BRICK IS AVAILABLE. THE EXTERIOR SURFACE DESIGN CALLED COATING GUIDE BED IS ALSO SPECIAL.

 Horizontally Perforated Bricks can be used alone on the internal intermediate partitions of the buildings. HorizontallyPerforated Bricks don’t bring in additional load on the building by their significant lightness.
Horizontally Perforated Bricks can be used by the additional heat isolation materials on the facing of the building and by the interior-exterior jacketing or multi unit wall applications.


Heat Conductivity Values of the Vertically Perforated Bricks manufactured with a density of 600 kg/m3 are stated as 0,32 W/mK.

Our bricks are at the exact miter by our moulds operated on CNC counters, appropriate raw material usage and by the technologic level of processing plant.

Multi unit wall application by vertically perforated bricks..


Horizontally perforated bricks grasp masonry mortar of the coating guide beds and coating well and compose resistance against cutting forces.

PRICE LISTS

APPLICATION GUIDE



  • 13,5 cm Brick
    Type (Ts En 771-1): category II - LD Weight (kg): 3 Dimensions: 19*19*13,5 cm Pressure Resistance: 2,5 N/mm2 Order Code: ONB Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 19 cm - 13,5 cm Density: 600 kg/m3 Units Per m2: (35 - 25)
  • 8,5 cm Brick
    Type (Ts En 771-1): Category II - LD Weight (kg): 2 Dimensions: 19*8,5*19 cm Pressure Resistance: 2 N/mm2 Order Code: SEB Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 8,5 cm -19 cm Density: 650 kg/m3 Units Per m2: (25 - 62)
  • 10 cm Brick
    Type (Ts En 771-1): Category II - LD Weight (kg): 3,5 Dimensions: 25*10*20 cm Pressure Resistance: 2,5 N/mm2 Order Code: 102025YDT Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 10 cm - 20 cm Density: 700 kg./m3 Units Per m2: (20 - 40)
  • 10 cm Brick (Short Type)
    Type (Ts En 771-1): Category II-LD Weight (kg): 3 Dimensions: 20*10*20 cm Pressure Resistance: 2,5 N/mm2 Order Code: 102020YDT Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 10 cm - 20 cm Density: 700 kg/m3 Units Per m2: (25 - 40)
  • 12 cm Brick
    Type (Ts En 771-1): Category II - LD Weight (kg): 3,5 Dimensions: 25*12*20 cm Pressure Resistance: 2,5 N/mm2 Order Code: 122025YDT Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 12 cm - 20 cm Density: 650 kg./m3 Units Per m2: (20 - 33)
  • 12-25 cm Brick
    Type (Ts En 771-1): Category I-LD Weight (kg): 5,5 Dimensions: 25*12*25 cm Pressure Resistance: 2,5 N/mm2 Order Code: 122525YDT Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 12 cm -25 cm Density: 700 kg/m3 Units Per m2: (16 - 33)

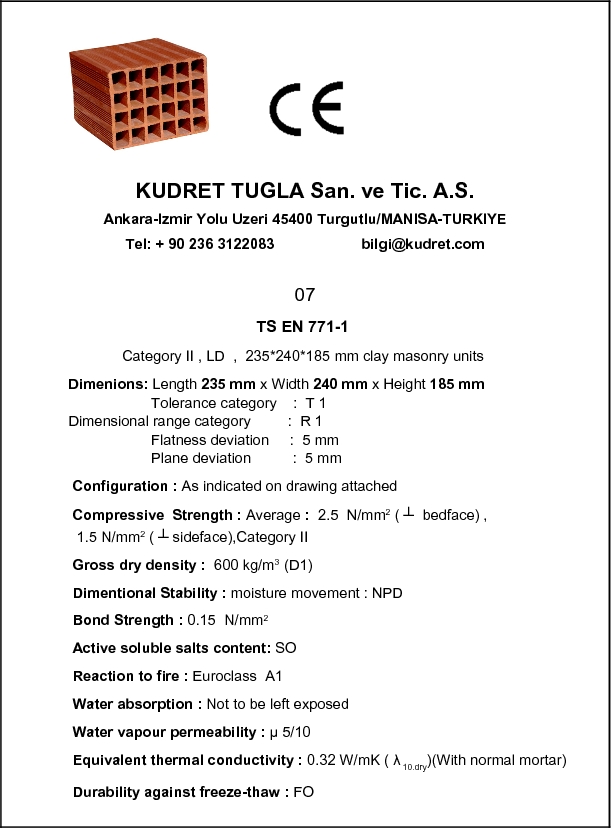

  • 24-18,5 cm Brick
    Type (Ts En 771-1): Category II - LD Weight (kg): 6 Dimensions: 23,5*24*18,5 cm Pressure Resistance: 2,5 N/mm2 Order Code: 24YDT Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 24 cm - 18,5 cm Density: 600 kg./m3 Units Per m2: (23 - 18)
  • 24-18,5 cm Brick Long Type
    Type (Ts En 771-1): Category II-LD Weight (kg): 7,5 Dimensions: 29*24*18,5 cm Pressure Resistance: 2,5 N/mm2 Order Code: 2429YDT Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 24 cm - 18,5 cm Density: 600 kg/m3 Units Per m2: (18 - 14,5)
  • 20-25 cm Brick
    Type (Ts En 771-1): Category II - LD Weight (kg): 7 Dimensions: 25*25*20 cm Pressure Resistance: 2 N/mm2 Order Code: 202525YDT Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 20 cm - 25 cm Density: 600 kg/m3 Units Per m2: (16 - 20)
  • 25 cm Brick Long Type
    Type (Ts En 771-1): Category I-LD Weight (kg): 10 Dimensions: 35*25*20 cm Pressure Resistance: 2,5 N/mm2 Order Code: 202535YDT Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 20 cm - 25 cm Density: 600 kg/m3 Units Per m2: (11 - 14)
  • 24-135 cm Brick
    Type (Ts En 771-1): Category II-LD Weight (kg): 4,5 Dimensions: 23,5*13,5*24 cm Pressure Resistance: 2,5 N/mm2 Order Code: 24135YDT Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 24 cm-13,5 cm Density: 600 kg/m3 Units Per m2: (31-18)
  • Half Bricks

    Half bricks for starting or finishing.

    Used for crosswise bonding of the wall.

    Half price of the bricks.

  • One and half bricks

    Starting bricks.

    Used for crosswise bondig of the wall.

    Price is one and half of the bricks.
