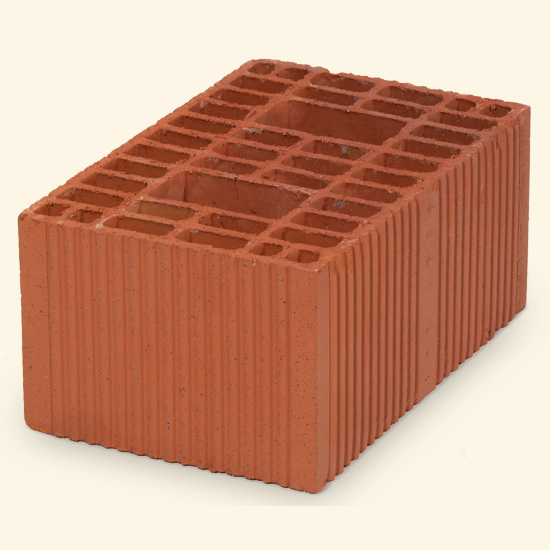

Vertically perforated bricks are manufactured at EN 771-1 Standard and as AB Class. On this type of bricks often having flat faces, mortar is applied on the faces..
|
Vertically perforated bricks are manufactured in two different groups as Bearing (HD) and Non-Bearing (LD). Bearing bricks have %35 or less cavities and used on Masonry Work Constructions. Non-bearing vertically perforated bricks can be used on high walls, reinforced concrete buildings and garden walls where the pressure resistance has to be more. |
 |
 |
Bearing bricks are used on masonry work constructions. In order to use wall materials on masonry work constructions their pressure resistance to be 5N/mm2 is sufficient according to disaster regulation. However there is also the term of having Max.%35 cavity for bricks. The pressure resistance of such bricks is stated as being over 15N/mm2 in our company. This 3 times more than the required value. |
Decorative Stack Brick Wall Application
Our decorative stack brick used in factory buildings and garden walls by decorative intention is manufactured as being Resistant to Frost. .
|
|
|
-

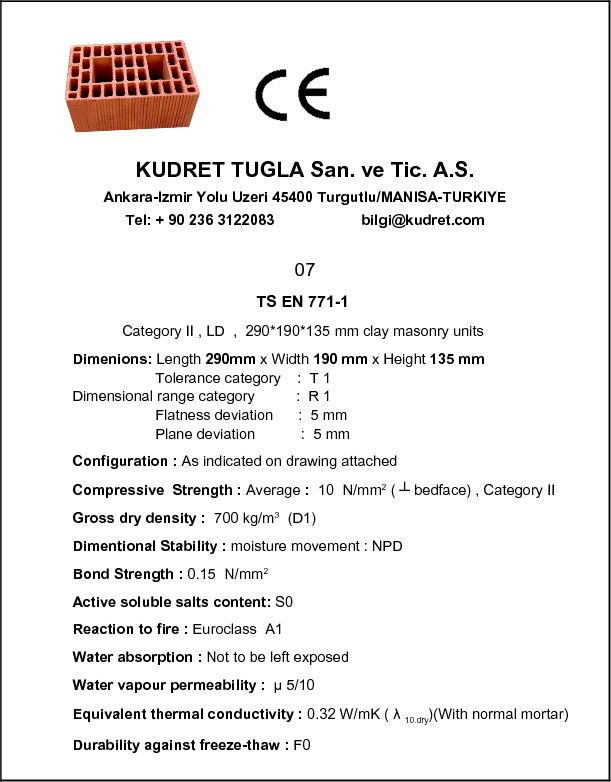

19 cm Massive Brick
Type (Ts En 771-1): Category II - LD Weight (kg): 4,5 Dimensions: 29*19*13,5(h) cm Pressure Resistance: 10 N/mm2 Order Code: YIG135 Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 19 cm. - 29 cm. Density: 700 kg./m3 Units Per m2: (22 - 35) -
19 cm Massive Ins.Brick
Type (Ts En 771-1): Category II - LD Weight (kg): 4,5 Dimensions: 29*19*13,5(h) cm Pressure Resistance: 10 N/mm2 Order Code: YIZO290 Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 19 cm. - 29 cm. Density: 700 kg./m3 Units Per m2: (22 - 35) -
24 cm Massive Brick
Type (Ts En 771-1): Category I - LD Weight (kg): 6 Dimensions: 29*24*13,5(h) cm Pressure Resistance: 10 N/mm2 Order Code: YIZ0240 Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 24 cm. - 29 cm. Density: 700 kg./m3 Units Per m2: (22 - 31) -
19 cm Decorative Massive Brick
Type (Ts En 771-1): Category I - HD Weight (kg): 6 Dimensions: 29*19*13,5(h) cm Pressure Resistance: 10 N/mm2 Order Code: DY135 Thermal Conductivity Value (λh): 0,37 W/mK Wall Thickness: 19 cm. Density: 800 kg./m3 Units Per m2: 22 -
19 cm.Load Bearing Brick
Type (Ts En 771-1): Category I - HD Weight (kg): 8 Dimensions: 29*19*13,5(h) cm Pressure Resistance: 14 N/mm2 Order Code: DINY135 Thermal Conductivity Value (λh): 0,50 W/mK Wall Thickness: 19 cm. - 29 cm. Density: 1100 kg./m3 Units Per m2: (22 - 35) -
19 cm. High Type Massive Brick
Type (Ts En 771-1): Category II - LD Weight (kg): 6,5 Dimensions: 29*19*18,5(h) cm Pressure Resistance: 7 N/mm2 Order Code: BY190 Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 19 cm. - 29 cm. Density: 700 kg./m3 Units Per m2: 18 - 25 -
19-39 cm.Massive Ins. Brick
Type (Ts En 771-1): Category II - LD Weight (kg): 7,5 Dimensions: 39*19*13,5(h) cm Pressure Resistance: 8 N/mm2 Order Code: YIZ390 Thermal Conductivity Value (λh): 0,32 W/mK Wall Thickness: 19 cm. Density: 750 kg./m3 Units Per m2: 16,5 -
19-25 cm Massive Ins. Brick
Type (Ts En 771-1): Category I-LD Weight (kg): 9 Dimensions: 25*19*22 cm Pressure Resistance: 8,5 N/mm2 Order Code: AB251922 Thermal Conductivity Value (λh): 0,33 Wall Thickness: 19 cm - 25 cm Density: 800 kg/m3 Units Per m2: 18 - 24
